Aseko Gas Analyzers

AIR LF

Biogas analyzer

All in ONE
Compact design
Easy connections
Touch-screen display
Easy calibration
Monitoring via internet

  • Dust filter
  • Flowmeter
  • Flow controller
  • Detector of condensate

Compact design 500 x 300 x 155 mm, 10 kg

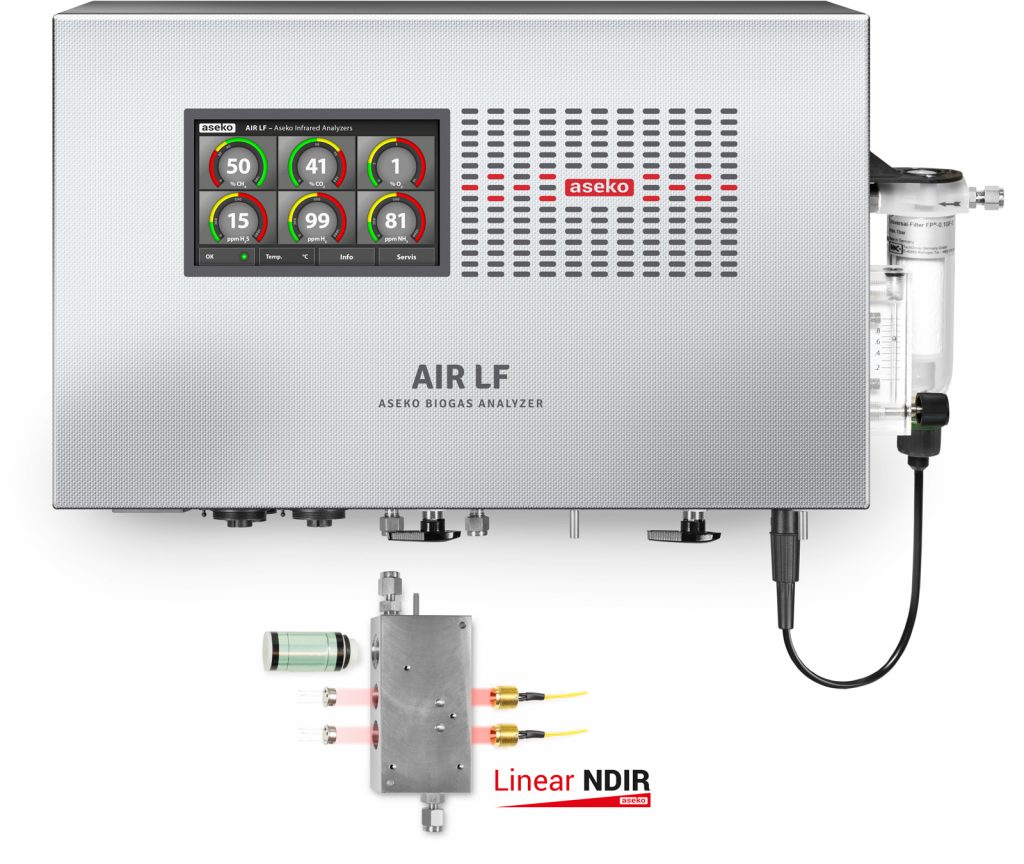

aseko Biogas analyzer AIR LF

Analyzer AIR LF measure the composition of landfill gas and biogas with linear NDIR technology.
This method of measuring by absorption of infrared radiation is highly resistant and provides stable measured data.
Knowledge of the exact composition of gas is important for more efficient production.
AIR LF analyzer allows transparent monitoring of measured data by connecting it to cloud service air.aseko.cz.

Integration

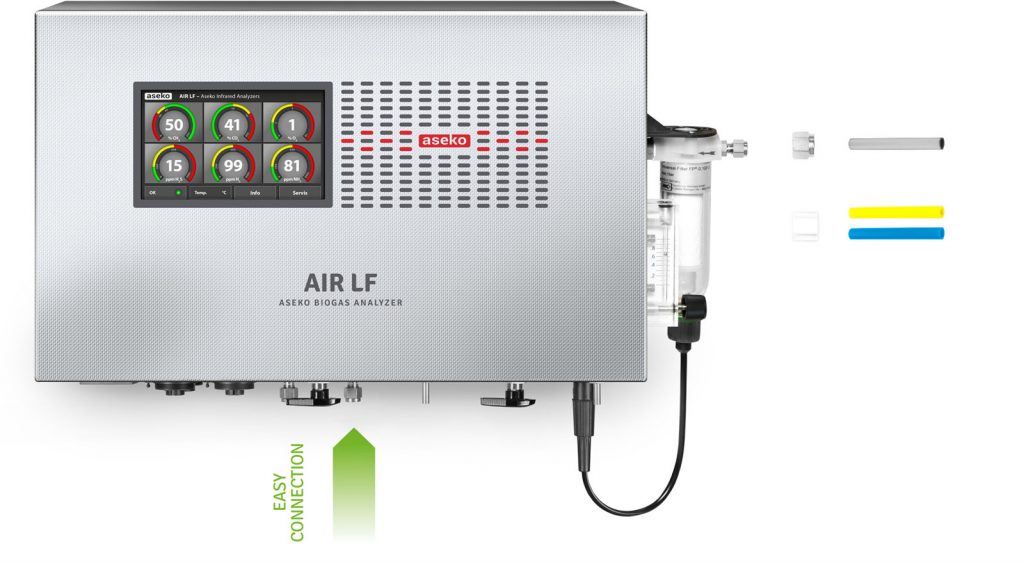

Biogas analyzer integration

Easy connection of measured gas
and calibration air.

Connection with stainless-steel or plastic tubes.

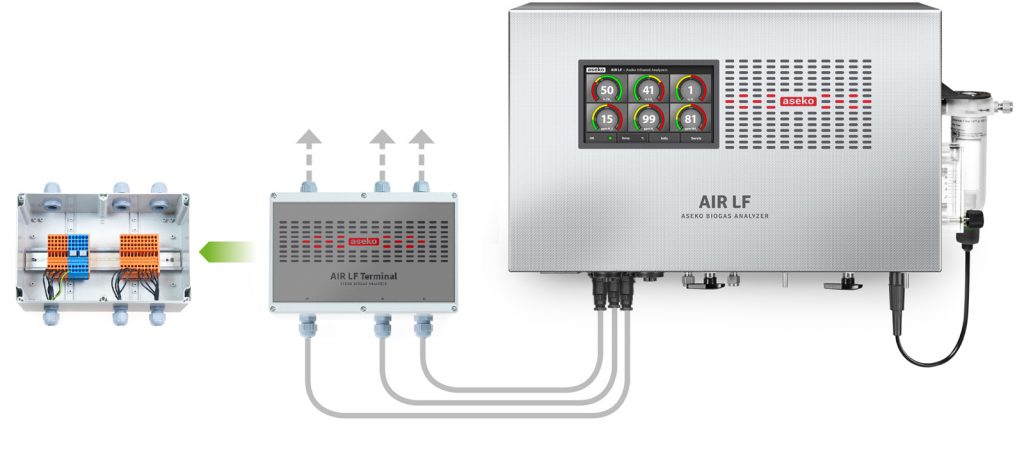

AIR LF Terminal

External terminal box for easy connection to your control system.
Biogas analyzer integration

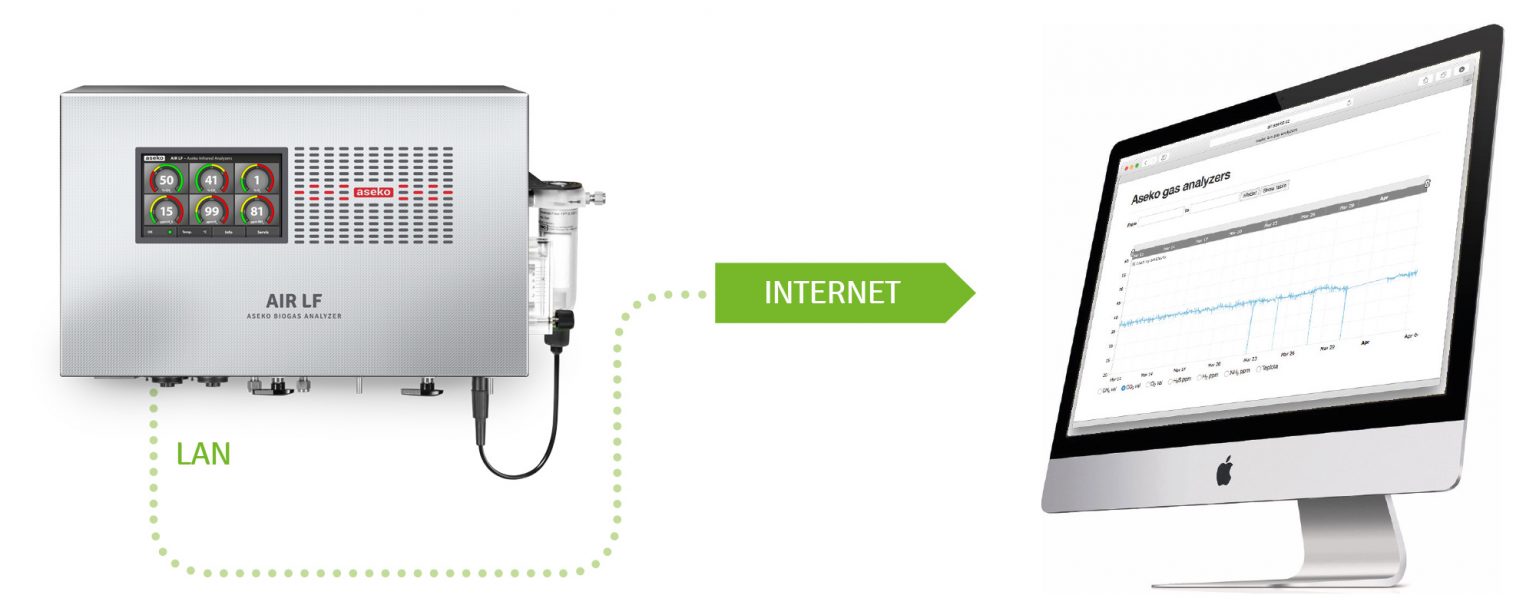

Monitoring of integration

Analyzer can be connected via LAN to cloud monitoring system air.aseko.cz

Online monitoring of integration

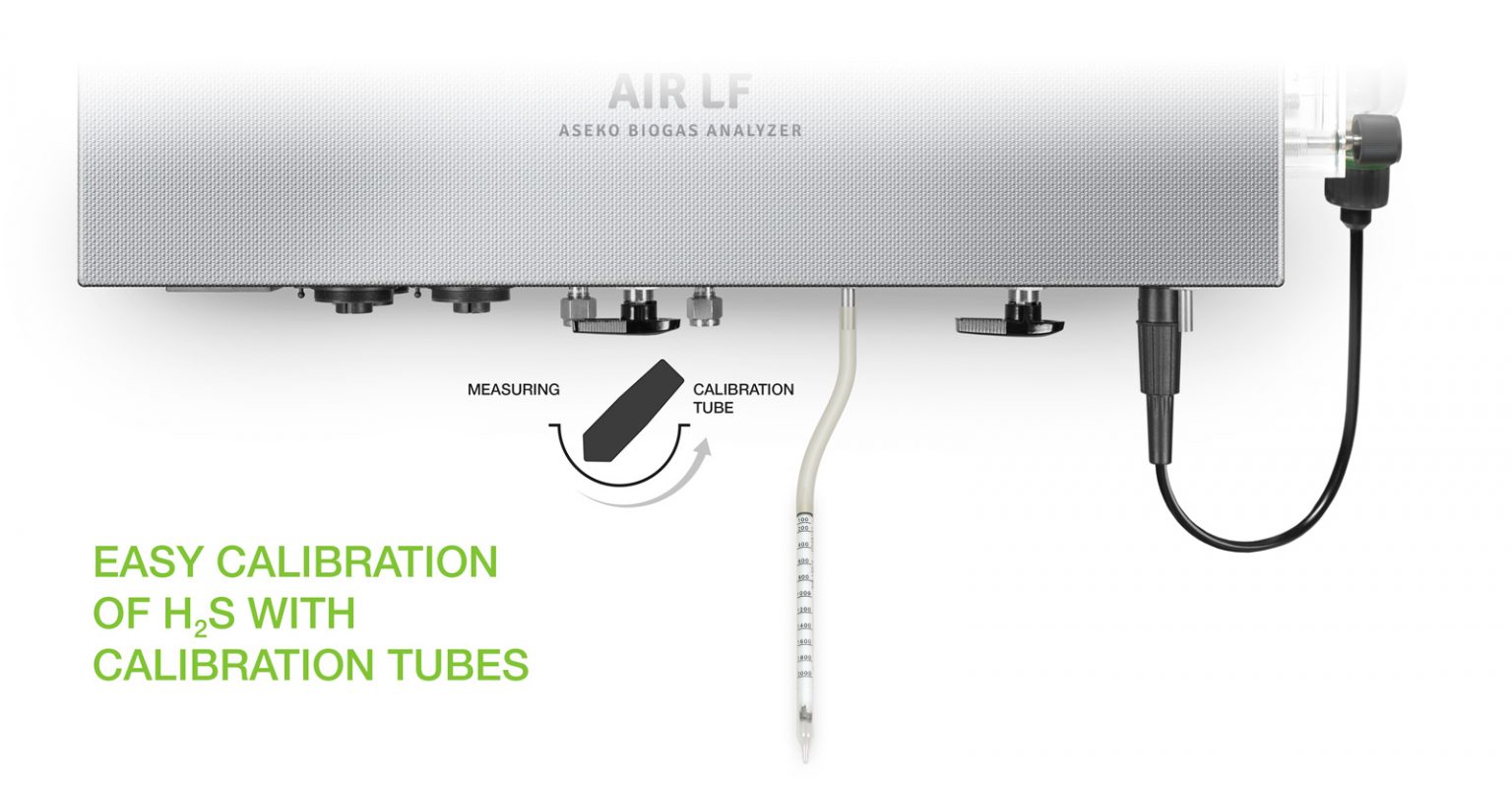

Calibration

  • Easy calibration of H2S with calibration tubes

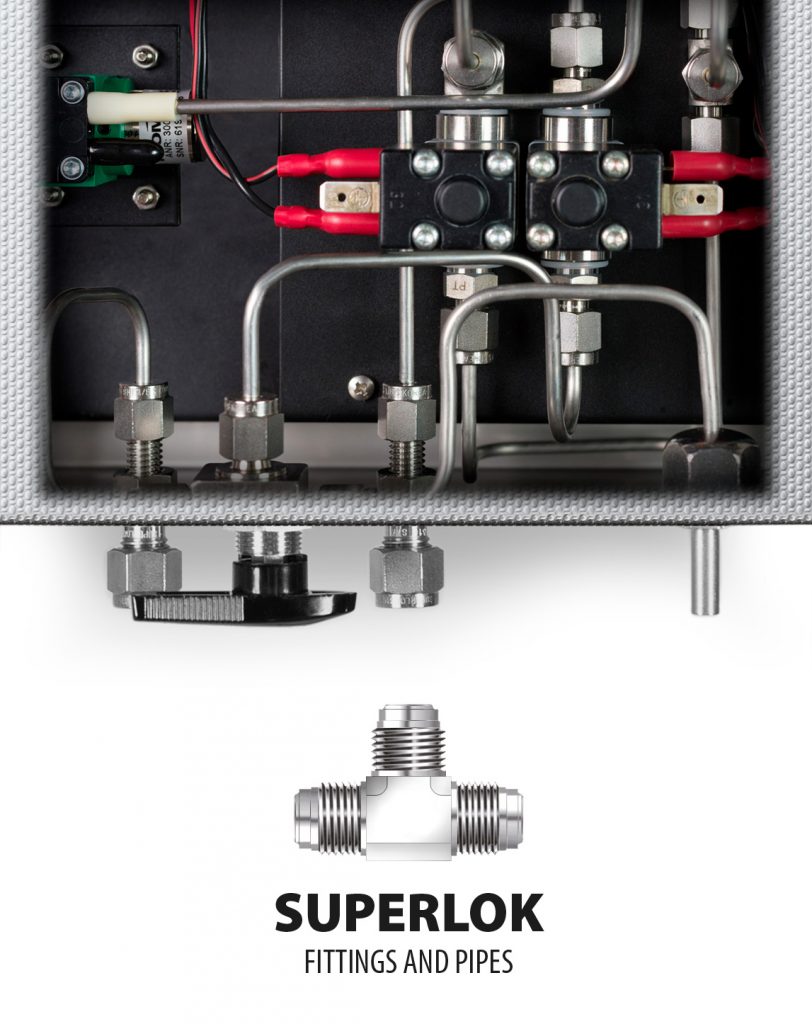

  • All inside piping made from stainless-steel
  • Connections made with SUPERLOK
stainless steel piping
easy biogas analyzer calibration

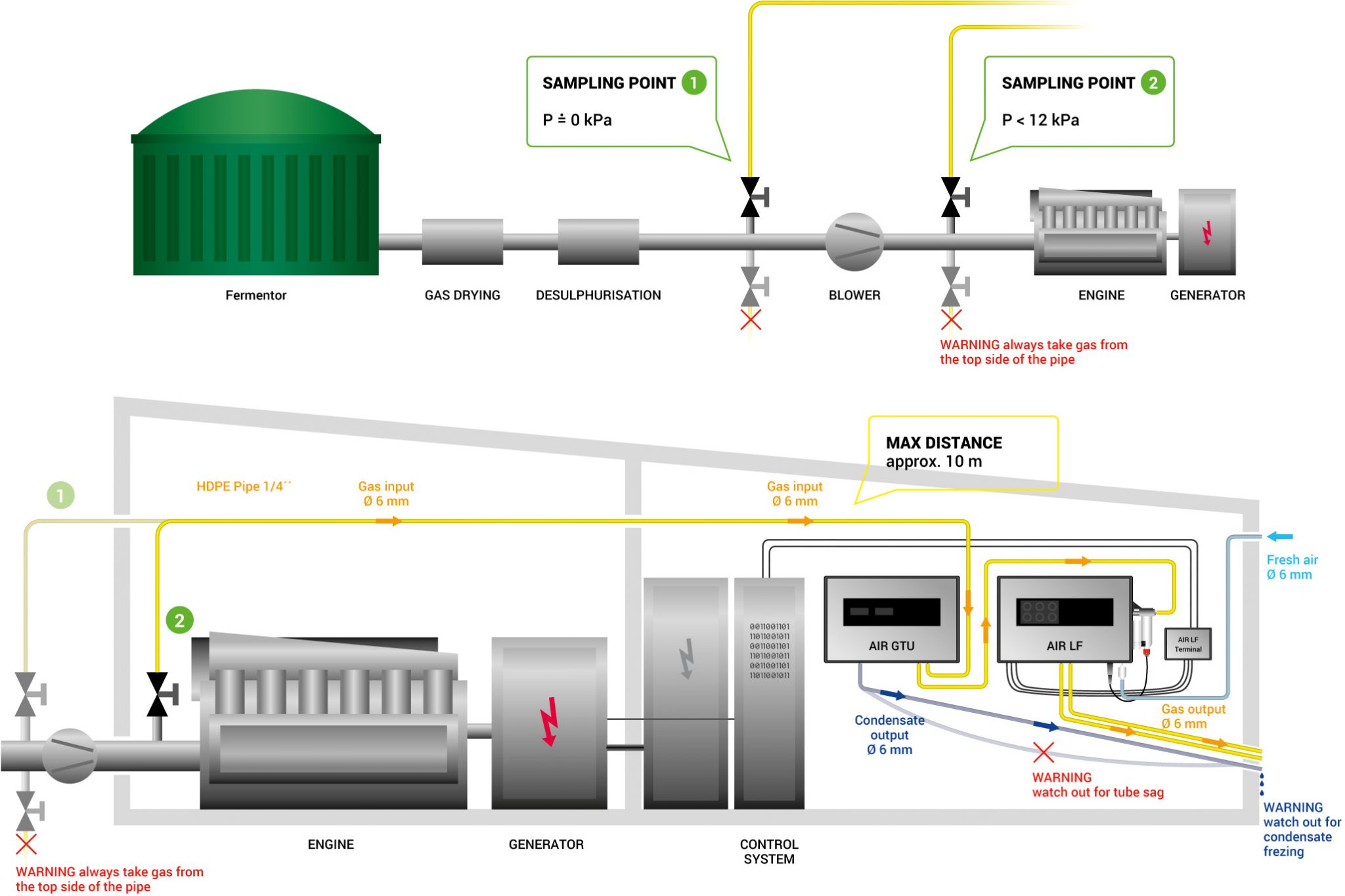

Connecting

biogas analyzer connection
TECHNICAL CHARACTERISTICS
Power supply
230 V, 50 Hz
Power Consumption
50 VA
Fuse
T 400 mA
Overvoltage category
II
Interface
Touch Screen 7", 6× 4–20 mA, LAN, relay outputs
Current Loop
4 – 20 mA, max 500 Ω
Protection
IP30
Climatic resistance
5 – 40°C, 80% r.v.
Size
500 x 300 x 155 mm
Weight
approx 10 kg
Gas flow
0,5 – 0,7 l/min.
Location
Wall mount
RANGE AND TOLERANCE OF THE VALUES MEASURED
Measured components
CH4
CO2
O2
H2S, H2, NH3
Measuring principle
NDIR
NDIR
electrochemical
electrochemical
Measuring range
0 – 100%
0 – 100%
0 – 25%
0 – 2000 ppm
Repeatability
+-2% f.s.
+-2% f.s.
+-3% f.s.
+-3% f.s.
Response time t90
20s
20s
50s
50s
Zero drift
2% / month
Sensitivity drift
3% / month
Warm up time
30 min.

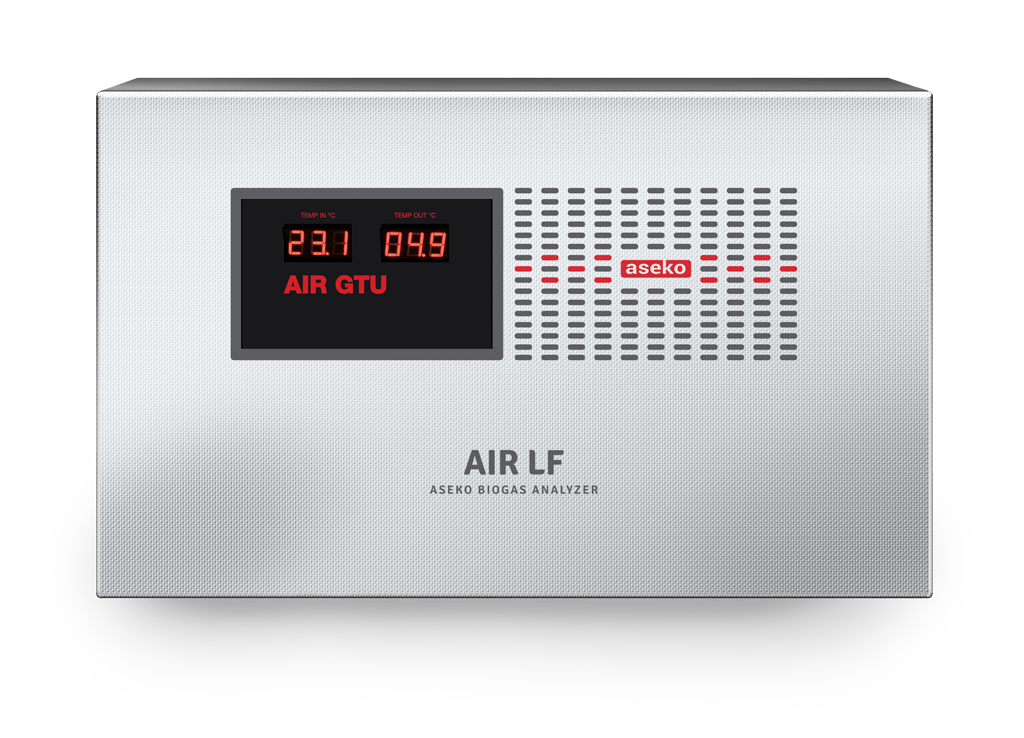

Gas treatment unit

(Recommended optional device)

Recommended unit AIR GTU for treatment of measured gas.
